Product Summary
The M25P10-AVMN6TP is a 1 Mbit (128K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –65 to 150 ℃; (2)Lead Temperature during Soldering: 260 ℃; (3)Input and Output Voltage (with respect to Ground): –0.6 to 4.0 V; (4)Supply Voltage: –0.6 to 4.0 V; (5)Electrostatic Discharge Voltage (Human Body model): –2000 to 2000 V.
Features
Features: (1)1 Mbit of Flash Memory; (2)Page Program (up to 256 Bytes) in 1.4ms (typical); (3)Sector Erase (256 Kbit) in 0.8s (typical); (4)Bulk Erase (1 Mbit) in 2.5s (typical); (5)2.7 to 3.6V Single Supply Voltage; (6)SPI Bus Compatible Serial Interface; (7)40MHz Clock Rate (maximum); (8)Deep Power-down Mode 1 μA (typical); (9)Electronic Signature (10h); (10)More than 100,000 Erase/Program Cycles per Sector; (11)More than 20 Year Data Retention.

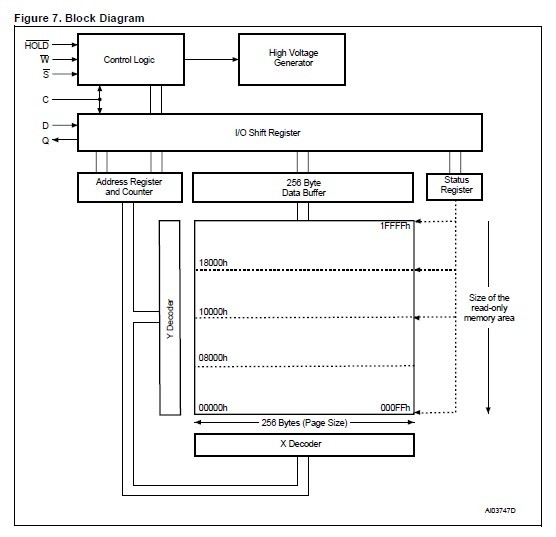

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M25P10-AVMN6TP |
STMicroelectronics |
Flash SERIAL SECTOR ERASE FLASH 1MEG |
Data Sheet |
Negotiable |
|
||||||||||||
