Product Summary
The M25P32-VMF6TP is one member of the M25P32 family which is designed as the 32 Mbit, low voltage, serial flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 64 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 16384 pages, or 4,194,304 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.
Parametrics
Absolute maximum ratings: (1)Storage Temperature:–65 to 150℃;(2)Input and Output Voltage (with respect to Ground):-0.6 to 4.0V;(3)Supply Voltage:-0.6 to 4.0V;(4)Electrostatic Discharge Voltage (Human Body model): -2000 to 2000V.
Features
Features: (1)32 Mbit of Flash Memory;(2)Page Program (up to 256 Bytes) in 1.4 ms (typical);(3)Sector Erase (512Kbit) in 1s (typical);(4)Bulk Erase (32 Mbit) in 4.5s (typical);(5)2.7 to 3.6V Single Supply Voltage;(6)SPI Bus Compatible Serial Interface;(7)40MHz Clock Rate (maximum);(8)Electronic Signatures: JEDEC Standard Two-Byte Signature (2016h) and RES Instruction, One-Byte, Signature (15h), for backward compatibility;(9)More than 20-Year Data Retention;(10)More than 100,000 Erase/Program Cycles per Sector.

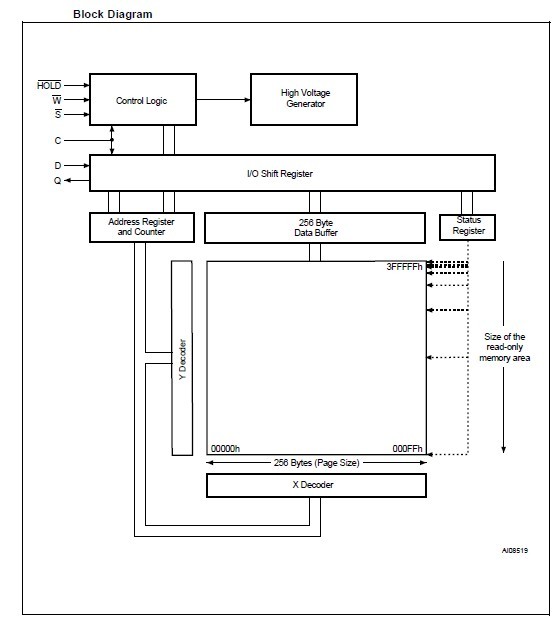

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M25P32-VMF6TP |
STMicroelectronics |
Flash SERIAL FLASH |
Data Sheet |
Negotiable |
|
||||||||||||
