Product Summary
The M25P16-VMW6TG is designed as one kind of 16 Mbit (2 M x 8) Serial Flash memory device that can be programmed 1 to 256 bytes at a time, using the Page Program instruction and can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: -65 to 150℃;(2)Input and Output Voltage (with respect to Ground): -0.6 to 4.0 V;(3)Supply Voltage: -0.6 to 4.0 V;(4)Electrostatic Discharge Voltage (Human Body model): -2000 to 2000V.
Features
Features: (1)16 Mbit of Flash memory; (2)Page Program (up to 256 Bytes) in 0.64ms (typical); (3)Sector Erase (512 Kbit) in 0.6s (typical); (4)Bulk Erase (16 Mbit) in 13s (typical) 2.7V to 3.6V Single Supply Voltage; (5)SPI Bus Compatible Serial Interface; (6)50 MHz Clock Rate (maximum); (7)Deep Power-down Mode 1uA (typical); (8)Electronic Signatures: JEDEC standard two-byte signature; (9)(2015h) and RES instruction, one-byte, signature (14h), for backward compatibility; (10)More than 100 000 Erase/Program cycles per Sector; (11)Hardware Write Protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2); (12)More than 20 year data retention; (13)Packages: ECOPACKR (RoHS compliant).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

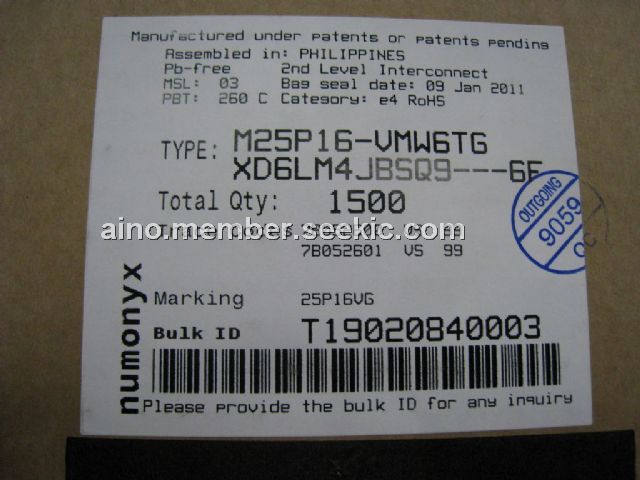

 M25P16-VMW6TG |
STMicroelectronics |
Flash 16MBIT SFLASH MEM |
Data Sheet |
Negotiable |
|
||||||||||||
